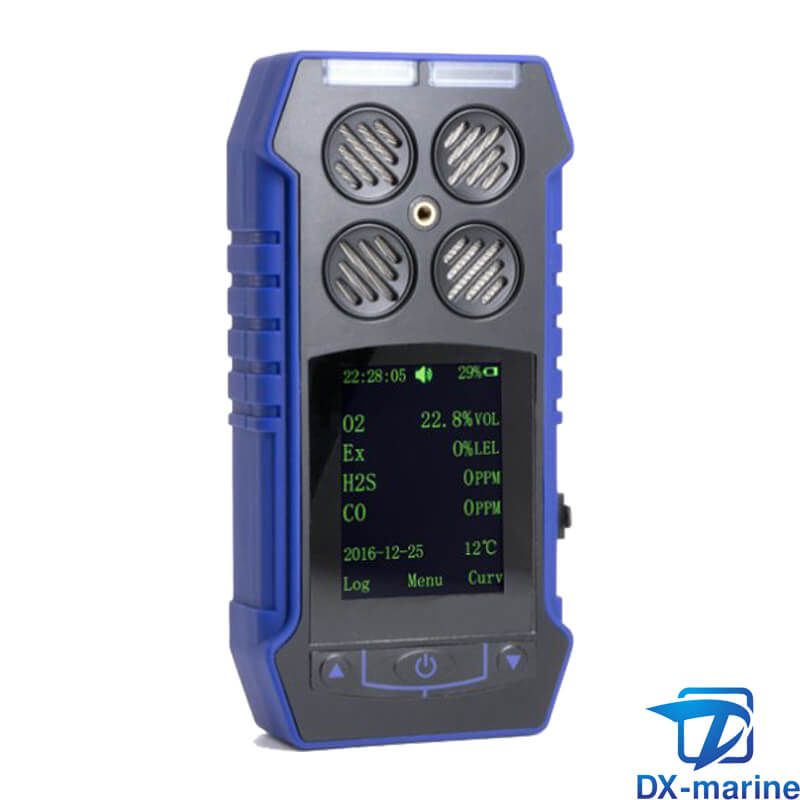

4 in 1 Multi-gas detector

Type: DX-BH-4S

  Introduction

     The DX-BH-4S portable multi-gas detector is used to detect the gas concentration by natural diffusion, using the latest 32 bit microprocessor and imported industrial grade sensor. The response time is fast, the measurement accuracy is high, and the stability and repeatability are good. 2.4 inch LCD screen, resolution 320*240 high definition interface display, with computer analysis, Chinese and English switching and other auxiliary functions, the whole machine meets the national standard of measurement production.

     It can continuously detect the concentration of toxic, harmful, flammable and explosive gases in the working environment. It is suitable for explosion protection, toxic gas leakage and emergency rescue, underground pipelines, mines, metallurgy, power plants, chemical industry, tunnels, tunnels and other places. Effective prevention of poisoning accidents, ensuring the safety of workers is not infringed, and production equipment is not damaged.

Characteristics:

  • Chinese and English switching

  • USB interface data upload with computer software

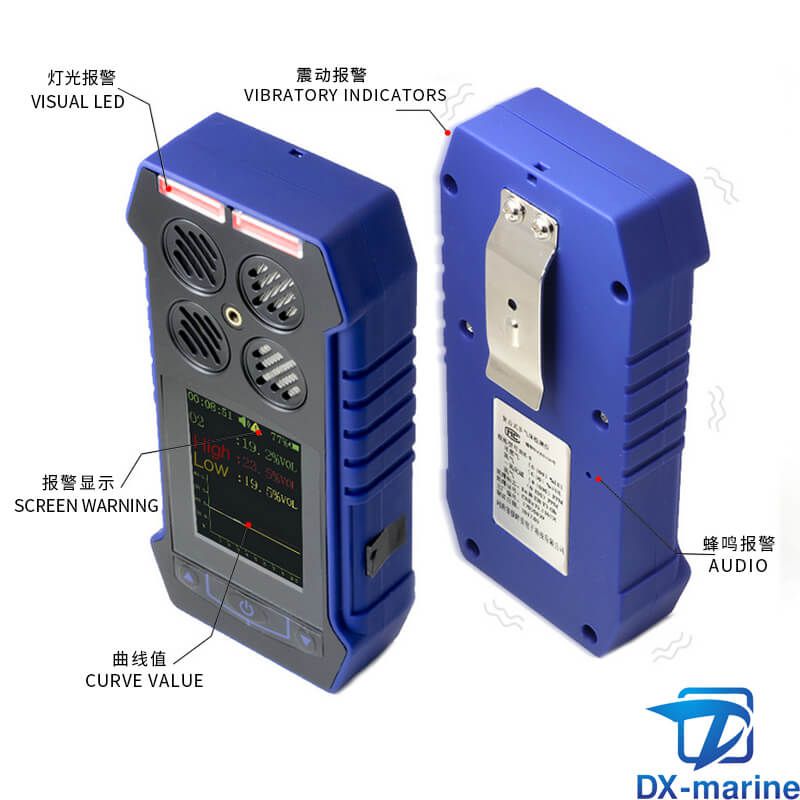

  • Four alarm: Sound, light, vibration, display

  • Waterproof, Dustproof, Explosion-proof

  • High cost performance

  • Light and convenient, easy to carry

Technical parameter

  Product type

  DX-BH-4S

  Principle

  Electrochemical and Catalytic sensor. Normal gases: EX, O2, H2S, CO. Other gases needed, please contact supplier

  Range

EX: (0~100)%LEL;

O2: (0~30.0)%vol;

H2S: (0~100)ppm;

CO: (0~1000)ppm

  Resolution

EX: 1%LEL;

O2: 0.1%vol;

H2S:1ppm;

CO: 1ppm

  Accuracy

  ≤±2%FS

  Sampling method

  Diffusion type (Sampling pump optional)

  Unit

ppm、 mg/m3、 %VOL、 %LEL

  Response Time(T90)

  <30S

  Language display

  Chinese and English switching

  Display

  LCD displays real-time and system status

  Color curve

  Colorful LCD gas curve display. It shows the change of gas concentration in a short period of time, which is convenient for comparative analysis and observation data change.

  Alarm method

  Audio, Visual LED, Vibratory and LCD Indicators

  Alarm features

  Alarm light: Red LED flashes alarm, ≥20m Alarm sound: Buzzer alarm ≥75dB Vibration alarm

  Working environment

  -20℃~50℃

  Power Supply

  3.7V, 1800mA Rechargeable lithium battery

  Gas Sensor Life

  2 years

  Charging time

Charging time is less than 7 hours, continuous working for more than 8 hours.

  Data record

  500pcs data storage

  Data upload

  USB interface data upload with computer software

  Password protection

  Password protection and password modification

  Recovery operation

  Support restore factory calibration function, restore factory parameter setting function.

  Explosion-proof grade

  Exib IIB T3 Gb

  Humidity

  0-95%RH (no dew)

  Shell material

  ABS+PC

  Dimensions

  145x69x28mm(L×W×H)
