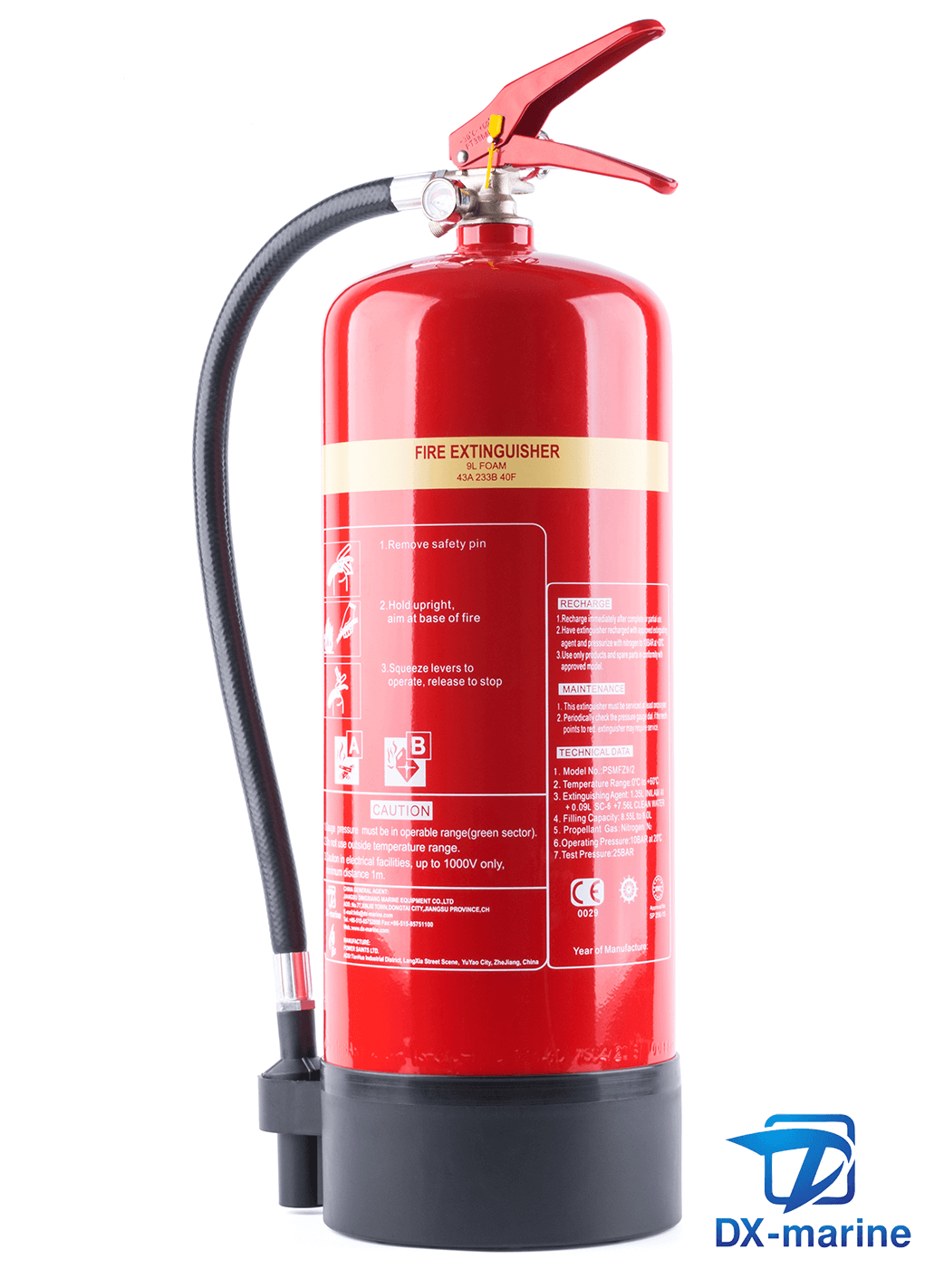

9L frying pan fire extinguisher (F type)
Extinguishant INILAM AX & SC-6
Capacity (L) 9
Propellant Dry Nitrogen(N2)
Cylinder Diameter (mm) 180
Overall Height (mm) 605
Approx Full Weight (kg) 14.1
Working Temp. Range 0°C to + 60°C
Working Pressure (20°C) 10 Bar
Test Pressure 27 Bar
Burst Pressure Exceeds 55 Bar
Approx Discharge Range (m) ＞4
Approx Discharge Time (sec) ≥15
Fire Rating 43A 233B 40F
Fire Class A B F
Cylinder Specification CE EN3-8
Discharge Assembly PVC Nozzle
Mounting Wall hanger
Operating Head / Valve Brass nickel plating
Paint Finishing RAL 3000 Flame Red
Manufactured & Certified to
CE EN 3-7 + EN 3-8
Approved MED CE EN3
