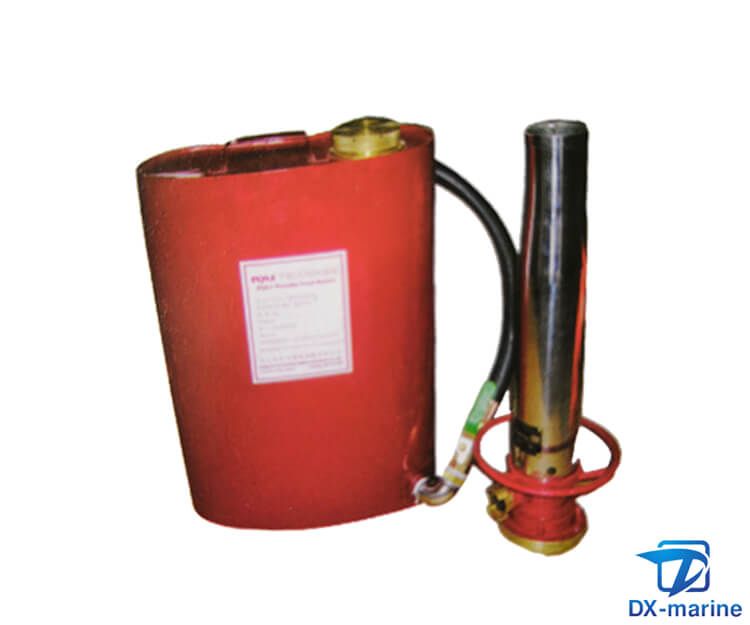

Portable Foam Applicators

A、Type: PQ8.C

B、Standard

    SOLAS 1974/2000 and International Code for Fire Safety System; GL.

C、Technical parameter

   Work pressure: ≥0.5Mpa

   Operation  pressure: 0.3-0.7 Mpa

   Capacity of mixture liquid: 400L/min

   Capacity of water: 400L/min

   Capacity of foam: 1.5m³/min

   Range of foam: ≥15 m

   Range of water: ≥ 15  m

   Dimension: 500*180*180mm

   Bore of gun barrel: 60mm

   Pipe fitting size : KY50/KY 65 mm

   Mixed foam liquid type : YE3/YE6 Fluoride albumen fire-extinguishing foam

   Volume of bucket: 20L

D、Approved: CCS
