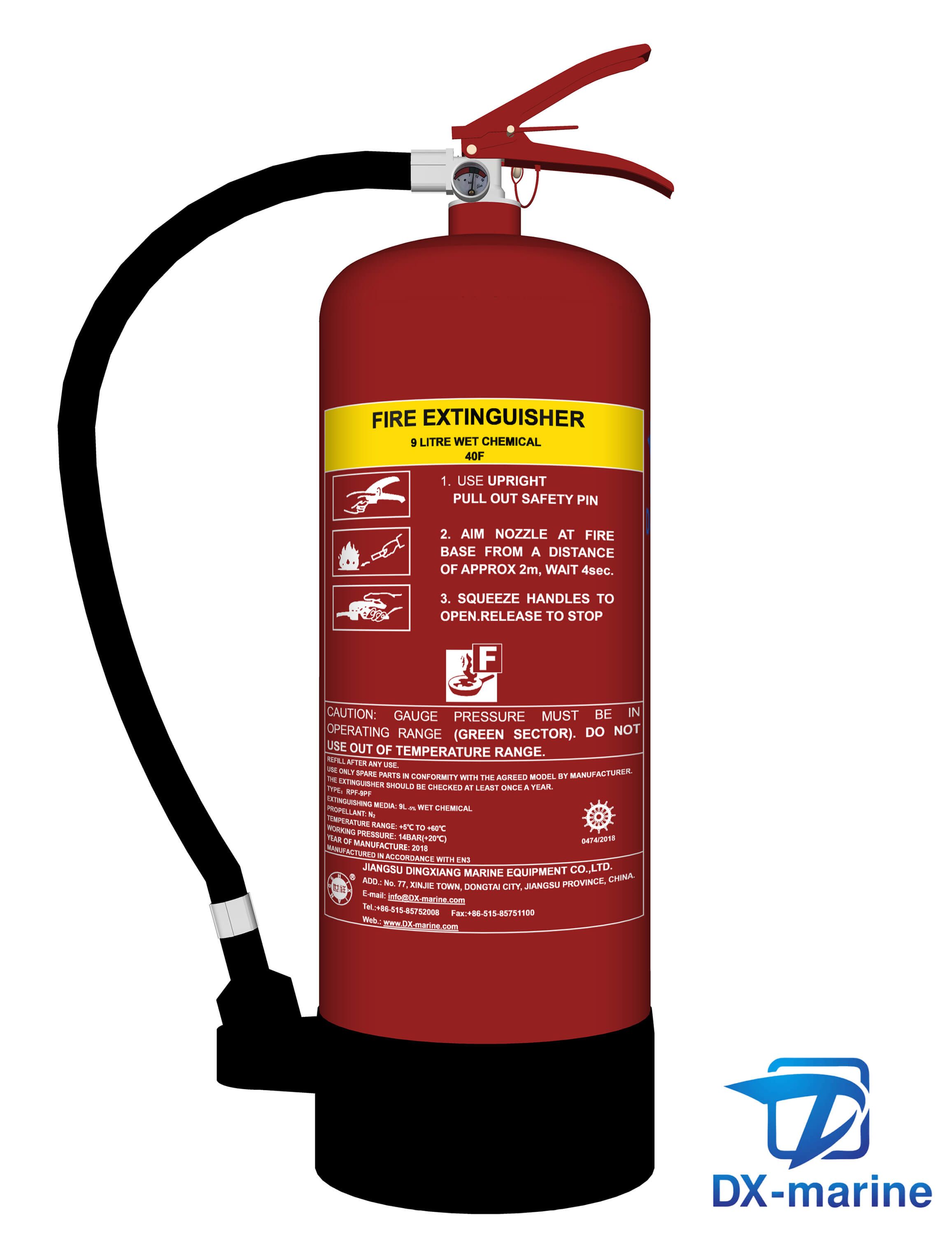

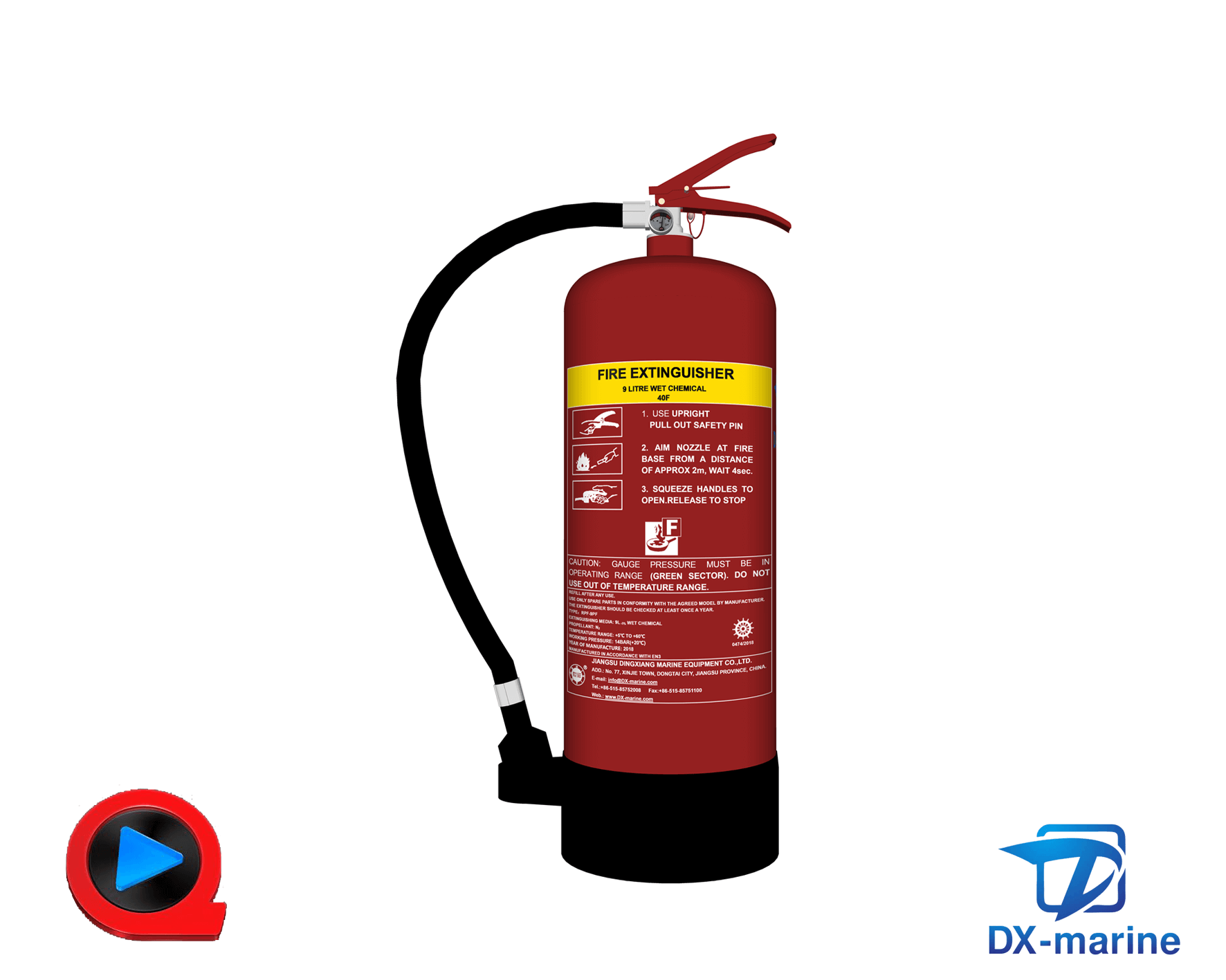

9L portable wet chemical extinghuisher
Type RPF-9PF
stored pressure
Extinguishant Wet chemical
Capacity (L) 9
Propellant Dry Nitrogen(N2)
Cylinder Diameter (mm) 180
Overall Height (mm) 590
Approx Full Weight (kg) 13.8
Working Temp. Range +5°C to + 60°C
Working Pressure (20°C) 12 Bar
Test Pressure 25 Bar
Burst Pressure Exceeds 69 Bar
Approx Discharge Range (m) 6
Approx Discharge Time (sec) 67
Fire Rating 40F
Cylinder Lining Performance Polymer Alloy
Paint Finishing RAL 3000 Flame Red
Polyester Powder Coating
Manufactured & Certified to
BS EN 3-7:2004 + A1: 2007,
BS EN 3-8: 2006
Approved MED EC SOLAS
