Embarkation Ladder

Type :  YYDCT

Technical parameter

    Material

1、Wood step

      Material：Import Liu An，size：525*115*28mm，antiskid lines on the surface.

2、Rubber step

  Material：Ding Qing rubber with steel frame inside，size： 525*115*30mm , antis-kid lines on the surface

3、Thimble: ABS

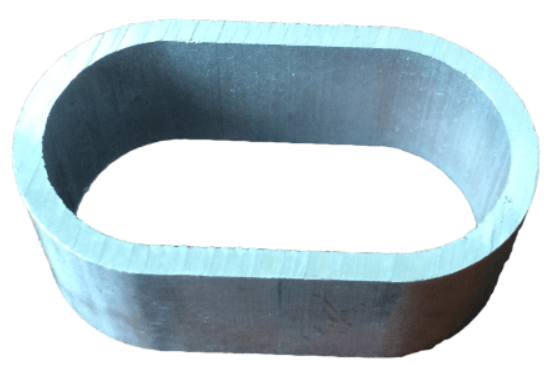

4、Hoop lock:

Aluminium alloy clasp, 20mm wide,3mm thick

5、Side rope

     Material: Sisal rope, size: φ22mm, Tensile strength: more than 24kn

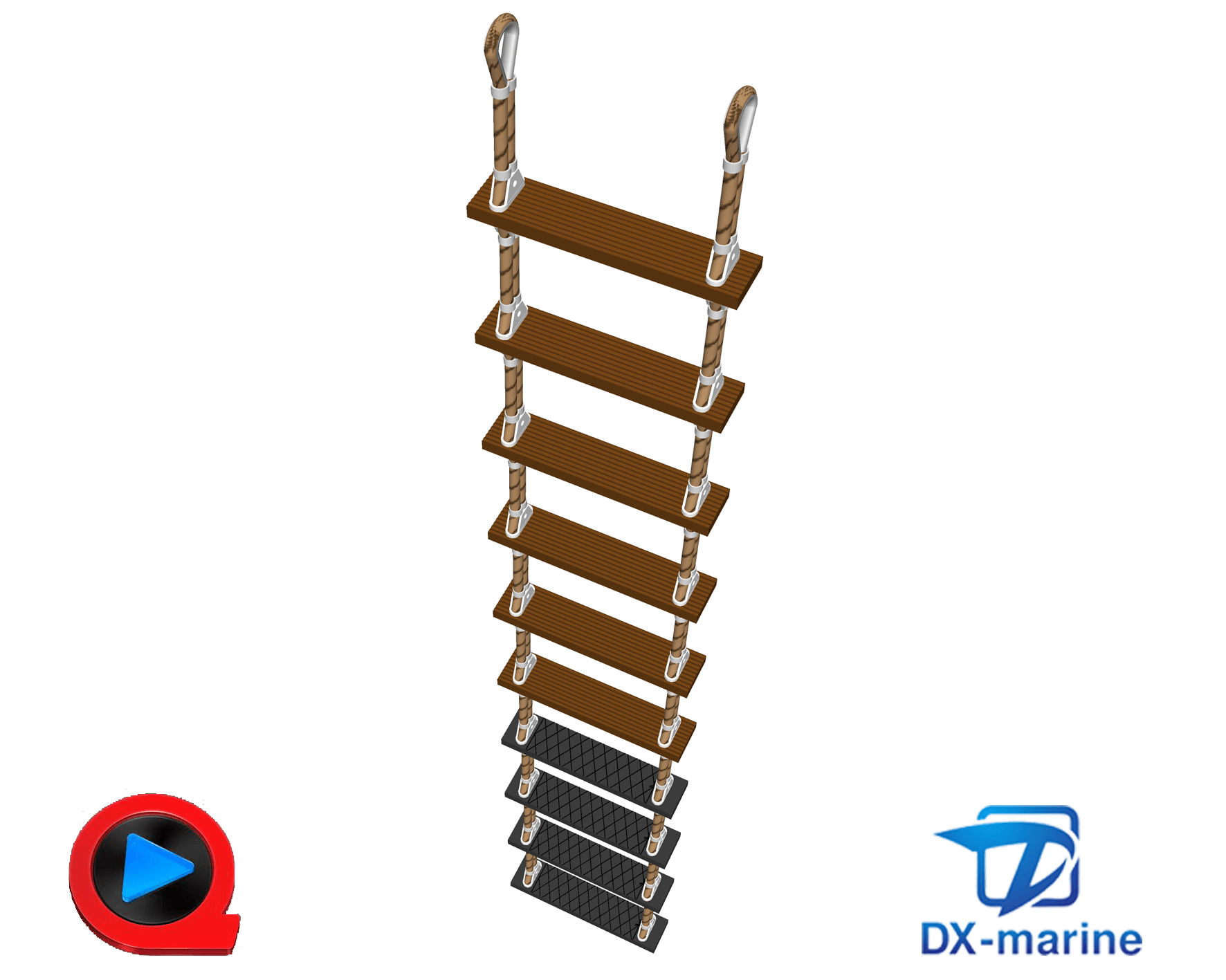

    Click on the video below to watch

Standard

ISO5489:2008(E)，IMO Res MSC.81(70) Reference standards: Reg. III/11, Reg.Ⅲ/34 of SOLAS 74 Convention as amended, Res.MSC.36(63)-(1994 HSC Code), Res MSC.48(66)-(LSA Code), Res.MSC.97(73)-(2000 HSC Code), MSC.1/Circ.1285.

Overall Performance & Requirement

     The steps and attachments shall not be cracked shall not be cracked, broken, or loosened. The ladder shall not sustain damage.

     Ladder and step attachment strength:

     Apply a static load of 8.8kN widely distributed over the bottom step for a period of at least 1 min, so that the load is applied evenly between the side ropes through the step attachment fittings.Steps shall not break or crack. Attachments between any step and a side rope shall not loosen or break. Side ropes shall not sustain any observable damage, elongation, or deformation that remains after the test load is removed.

Approve: CCS MED EC SOLAS
